Features
| - Available in sizes 9, 15, 25, 37 and 50-way |
| - Available with black or light grey housing |
| - Short mounting screws instead of long jackscrews |
| - Also available with long jackscrews (MHCCOV-SCL) |
| - Suitable for any common d-sub connector |
Specifications
| Housing Material: | ABS, UL94 HB |
| Operating Temperature: | -55°C to +110°C |
| Cable Entry: | Top |
| Thumbscrews: | UNC 4-40 |
| Cable Outer Diameter: | Up to 11.5mm |
| Housing Colour: | Black or Light Grey |

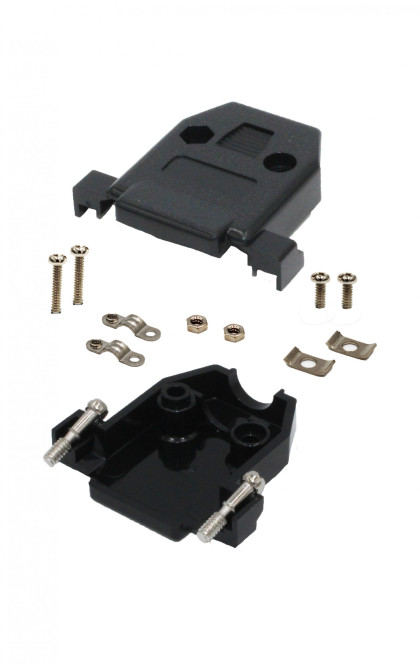

Economy D-Sub Hood | Short Screws, Top Entry
Loading Parts
Part # |
Position |
housing material |
drawing |
Order Samples |
|
|---|---|---|---|---|---|
|
MHCCOV09-SC-BK | 9 | ABS, Black, UL94 HB | ||
|
MHCCOV09-SC-LG | 9 | ABS, Light Grey, UL94 HB | ||
|
MHCCOV15-SC-BK | 15 | ABS, Black, UL94 HB | ||
|
MHCCOV15-SC-LG | 15 | ABS, Light Grey, UL94 HB | ||
|
MHCCOV25-SC-BK | 25 | ABS, Black, UL94 HB | ||
|
MHCCOV25-SC-LG | 25 | ABS, Light Grey, UL94 HB | ||
|
MHCCOV37-SC-BK | 37 | ABS, Black, UL94 HB | ||
|
MHCCOV37-SC-LG | 37 | ABS, Light Grey, UL94 HB | ||
|
MHCCOV50-SC-BK | 50 | ABS, Black, UL94 HB | ||
|
MHCCOV50-SC-LG | 50 | ABS, Light Grey, UL94 HB |
