Features
| - MHULTI hood, with interchangeable cable clamping accessories |
| - MHDM has a compression insert and clamp |
| - Available in sizes 9, 15, 25 and 37-way |
| - Suitable for any MH d-sub connector |
| - 360° EMI shielding |
| - Supports all types of cable |
| - Easy to reopen |
| - Also available as a cable crimping ferrule (MHC series) version |
| - Also available as a cone and clamp (MHEE series) version |
Specifications
| Housing Material: | Die Cast Zinc Alloy |
| Housing Plating: | Nickel Plated |
| Operating Temperature Range: | -40°C to +120°C |
| Cable Entry: | Top Entry |
| Thumbscrews: | UNC 4-40 (Standard), M2.5 and M3 (On Request) |
| Cable Outer Diameter: | Up to 13mm |
MHULTI D-Sub Hood | Compression Insert, Top Entry
Loading Parts
Part # |
Position |
housing material |
drawing |
Order Samples |
|
|---|---|---|---|---|---|
|
MHDM-09-K | 9 | Die Cast Zinc | ||
|
MHDM-15-K | 15 | Die Cast Zinc | ||
|
MHDM-25-K | 25 | Die Cast Zinc | ||
|
MHDM-37-K | 37 | Die Cast Zinc | ||
|
MHDM15-DB15P-K | 15 | N/A | N/A | |
|
MHDM15-DB15S-K | 15 | N/A | N/A | |
|
MHDM15-DM15P-K | 15 | N/A | N/A | |
|
MHDM15-DM15S-K | 15 | N/A | N/A | |
|
MHDM25-DB25P-K | 25 | N/A | N/A | |
|
MHDM25-DB25S-K | 25 | N/A | N/A | |
|

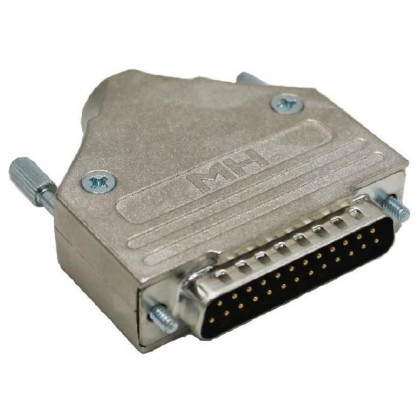

MHDM25-DM25P-K | 25 | N/A | N/A | |
|
MHDM25-DM25S-K | 25 | N/A | N/A | |
|
MHDM9-DB9P-K | N/A | N/A | ||
|
MHDM9-DB9S-K | 9 | N/A | ||
|
MHDM9-DM9P-K | N/A | N/A | ||
|

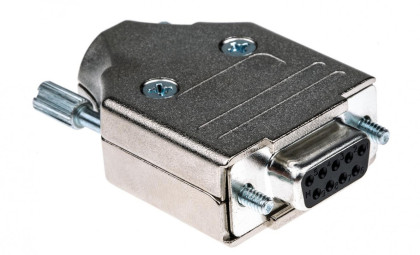

MHDM9-DM9S-K | N/A | N/A |
