Features
| - Available in sizes 15, 26, 44 and 62-way |
| - Connector housings are supplied without contacts |
| - Connectors accept MHDBCTMR (plug) or MHDBCTFR (socket) contacts only, purchased separately |
| - Suitable for most MH d-sub hoods |
| - 3-row high density contact layout |
Specifications
| Insulator Material: | Glass-filled Polyester, Black, UL94 V-0 |
| Shell Material: | Stamped Steel |
| Shell Plating: | Nickel Plated |
| Contact Material (Contacts not Preloaded): | Copper Alloy |
| Contact Plating (Contacts not Preloaded): | Selective Gold over Nickel Plated |
| Contact Rating (Contacts not Preloaded): | 100 inserts min. (Stamped Contacts) |

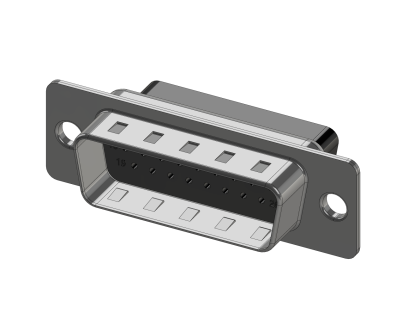

High-Density Crimped Contact D-Sub Housing
Loading Parts
Part # |
Position |
Drawing |
Order Samples |
|
|---|---|---|---|---|
|
MHHDBC15-SP | 15 | ||
|
MHHDBC15-SS | 15 | ||
|
MHHDBC26-SP | 26 | ||
|
MHHDBC26-SS | 26 | ||
|
MHHDBC44-SP | 44 | ||
|
MHHDBC44-SS | 44 | ||
|
MHHDBC62-SP | 62 | ||
|
MHHDBC62-SS | 62 |
