Features
| - Available in sizes 9, 15, 25 and 37-way |
| - Suitable for any common D-Sub connector |
| - Strain relief/ compression inserts ensure a secure termination |
| - Also available as a top entry (MHC88E3 series) version |
Specifications
| Housing Material: | ABS, Black, UL94 HB |
| Housing Plating: | Nickel over Copper |
| Operating Temperature Range: | -40°C to +120°C |
| Cable Entry: | 45° Side |
| Thumbscrews: | UNC 4-40 |
| Cable Outer Diameter: | Up to 16.5mm |

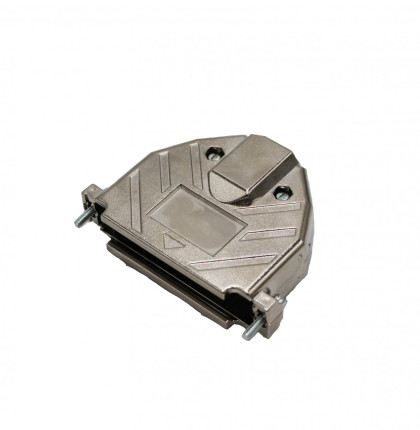

Standard D-Sub Hood | 45° Side Entry
Loading Parts
Part # |
Position |
housing material |
drawing |
Order Samples |
|
|---|---|---|---|---|---|
|
MHC88E200000 | 9 | ABS, UL 94 HB, Nickel Plated | ||
|
MHC88E210000 | 15 | ABS, UL 94 HB, Nickel Plated | ||
|
MHC88E220000 | 25 | ABS, UL 94 HB, Nickel Plated | ||
|
MHC88E230000 | 37 | ABS, UL 94 HB, Nickel Plated |
