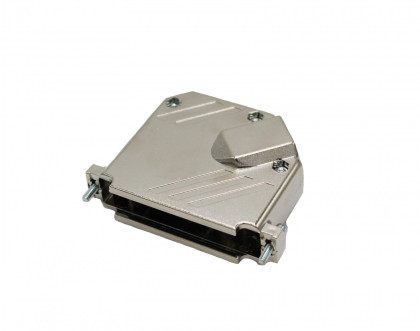

MHC88E3 Series MH Metalised Plastic D-Sub hoods

Features

- Available in sizes 9, 15, 25 and 37-way
- Suitable for any common D-Sub connector
- Strain relief/ compression inserts ensure a secure termination
- Also available as a 45° side entry (MHC88E2 series) version


Specifications

Housing Material:ABS, Black, UL94 HB
Housing Plating:Nickel over Copper
Operating Temperature Range:-40°C to +120°C
Cable Entry:Top
Thumbscrews:UNC 4-40
Cable Outer Diameter:Up to 16.5mm



Standard D-Sub Hood | Top Entry


OR

Loading Parts


Part #

Position

housing material

drawing

Order Samples

MHC88E300000
MHC88E300000 9 ABS, UL 94 HB, Nickel Plated
MHC88E310000
MHC88E310000 15 ABS, UL 94 HB, Nickel Plated
MHC88E320000
MHC88E320000 25 ABS, UL 94 HB, Nickel Plated
MHC88E330000
MHC88E330000 37 ABS, UL 94 HB, Nickel Plated
MHC88E340000
MHC88E340000 50 ABS, UL 94 HB, Nickel Plated
