Features
- Quick and secure push-pull latching system |
- Rated for up to 30 AMPS, depending on configuration |
- Metal shell provides full EMI/RFI shielding |
- Latching system rated for 5,000 (metal) / 1,000 (plastic) reliable mating cycles |
- High reliability precision machined contacts |
- IP50 and IP68 versions available |
- Compatible mating with existing industry solutions |
Specifications
- Cable or panel mount socket options |
- Gold plated, solder cup contacts |
- Strain relief boot supplied with connector if configured |
- Chromium plated brass shell or PSU plastic shell option |
- 2 - 34 contacts, rated for up to 30 A |
- T & K series IP68 certified, B, P & 00 series IP50 certified |
- Operating temperature -55ºC ~ 200ºC (metal) |
- Insulator resistance 5 GΩ |
![](/imagecache/compReg/edac_group_b.jpg)

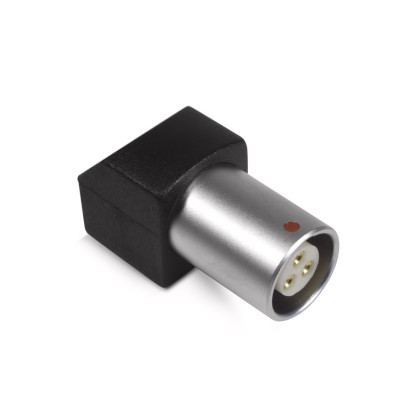

Compact, shielded, self-latching push-pull connectors suitable for data, signal and power applications.
Loading Parts
Part # |
Series |
Size |
Plug diameter (max) |
No. Pins |
IP rating |
Comes with boot? |
Drawing |
|
---|---|---|---|---|---|---|---|---|
![]() ![]() |
MHCP00xxFSxxS | 00 | Miniature | 7mm | 2-7 | IP50 | Yes | |
![]() ![]() |
MHCP00xxPSxx | 00 | Miniature | 7mm | 2-7 | IP50 | No | |
![]() ![]() |
MHCP00xxPSxxS | 00 | Miniature | 7mm | 2-7 | IP50 | Yes | |
![]() ![]() |
MHCP00xxRD | 00 | Miniature | 7mm | 2-7 | IP50 | n/a | |
![]() ![]() |
MHCP00xxSS | 00 | Miniature | 7mm | 2-7 | IP50 | n/a | |
![]() ![]() |
MHCP0BAG | B | 0 | N/A | N/A | N/A | N/A | |
![]() ![]() |
MHCP0BxxFSxx | B | 0 | 9.5mm | 2-10 | IP50 | No | |
![]() ![]() |
MHCP0BxxFSxxS | B | 0 | 9.5mm | 2-10 | IP50 | Yes | |
![]() ![]() |
MHCP0BxxPSxx | B | 0 | 9.5mm | 2-10 | IP50 | No | |
![]() ![]() |
MHCP0BxxPSxxS | B | 0 | 9.5mm | 2-10 | IP50 | Yes | |
![]() ![]() |
MHCP0BxxRD | B | 0 | 9.5mm | 2-10 | IP50 | N/A | |
![]() ![]() |
MHCP0BxxSS | B | 0 | 9.5mm | 2-10 | IP50 | N/A | |
![]() ![]() |
MHCP0KxxFSxxS | K | 0 | 11.5mm | 2-10 | IP68 | Yes | |
![]() ![]() |
MHCP0KxxPSxx | K | 0 | 11.5mm | 2-10 | IP68 | No | |
![]() ![]() |
MHCP0KxxPSxxS | K | 0 | 11.5mm | 2-10 | IP68 | Yes | |
![]() ![]() |
MHCP0KxxSS | K | 0 | 11.5mm | 2-10 | IP68 | N/A | |
![]() ![]() |
MHCP0TxxPSxx | T | 0 | 10mm | 2-10 | IP68 | No | |
![]() ![]() |
MHCP0TxxPSxxS | T | 0 | 10mm | 2-10 | IP68 | Yes | |
![]() ![]() |
MHCP1BARLGxx | B | 1 | 12mm | N/A | N/A | N/A | |
![]() ![]() |
MHCP1BxxFSxx | B | 1 | 12mm | 2-16 | IP50 | No | |
![]() ![]() |
MHCP1BxxFSxxS | B | 1 | 12mm | 2-16 | IP50 | Yes | |
![]() ![]() |
MHCP1BxxPSxx | B | 1 | 12mm | 2-16 | IP50 | No | |
![]() ![]() |
MHCP1BxxPSxxS | B | 1 | 12mm | 2-16 | IP50 | Yes | |
![]() ![]() |
MHCP1BxxRD | B | 1 | 12mm | 2-16 | IP50 | N/A | |
![]() ![]() |
MHCP1BxxSS | B | 1 | 12mm | 2-16 | IP50 | N/A | |
![]() ![]() |
MHCP1KxxFSxx | K | 1 | 13.5mm | 2-16 | IP68 | No | |
![]() ![]() |
MHCP1KxxFSxxS | K | 1 | 13.5mm | 2-16 | IP68 | Yes | |
![]() ![]() |
MHCP1KxxPSxx | K | 1 | 13.5mm | 2-16 | IP68 | No | |
![]() ![]() |
MHCP1KxxPSxxS | K | 1 | 13.5mm | 2-16 | IP68 | Yes | |
![]() ![]() |
MHCP1KxxSS | K | 1 | 13.5mm | 2-16 | IP68 | N/A | |
![]() ![]() |
MHCP1PxxFSxx | P | 1 | 14mm | 2-16 | IP50 | No | |
![]() ![]() |
MHCP1PxxFSxxS | P | 1 | 14mm | 2-16 | IP50 | Yes | |
![]() ![]() |
MHCP1PxxPSxx | P | 1 | 14mm | 2-16 | IP50 | No | |
![]() ![]() |
MHCP1PxxPSxxS | P | 1 | 14mm | 2-16 | IP50 | Yes | |
![]() ![]() |
MHCP1PxxRD | P | 1 | 14mm | 2-16 | IP50 | N/A | |
![]() ![]() |
MHCP1PxxSS | P | 1 | 14mm | 2-16 | IP50 | N/A | |
![]() ![]() |
MHCP1TxxPSxx | T | 1 | 12.5mm | 2-16 | IP68 | No | |
![]() ![]() |
MHCP1TxxPSxxS | T | 1 | 12.5mm | 2-16 | IP68 | Yes | |
![]() ![]() |
MHCP1TxxSS | T | 1 | 12.5mm | 2-16 | IP68 | N/A | |
![]() ![]() |
MHCP2BxxFSxx | B | 2 | 15mm | 2-32 | IP50 | No | |
![]() ![]() |
MHCP2BxxFSxxS | B | 2 | 15mm | 2-32 | IP50 | Yes | |
![]() ![]() |
MHCP2BxxPSxx | B | 2 | 15mm | 2-32 | IP50 | No | |
![]() ![]() |
MHCP2BxxPSxxS | B | 2 | 15mm | 2-32 | IP50 | Yes | |
![]() ![]() |
MHCP2BxxSS | B | 2 | 15mm | 2-32 | IP50 | N/A | |
![]() ![]() |
MHCP2KxxFSxx | K | 2 | 17mm | 2-32 | IP68 | No | |
![]() ![]() |
MHCP2KxxFSxxS | K | 2 | 17mm | 2-32 | IP68 | Yes | |
![]() ![]() |
MHCP2KxxPSxx | K | 2 | 17mm | 2-32 | IP68 | No | |
![]() ![]() |
MHCP2KxxPSxxS | K | 2 | 17mm | 2-32 | IP68 | Yes | |
![]() ![]() |
MHCP2KxxSS | K | 2 | 17mm | 2-32 | IP68 | N/A | |
![]() ![]() |
MHCP2PxxPSxx | P | 2 | 18.5mm | 2-34 | IP50 | No |
